Bright, sunlight-readable 9” combo offers the convenience of a keyed-assist touchscreen. Includes support for crisp, clear Garmin CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonars, and it’s also compatible with Panoptix all-seeing sonar. Preloaded with BlueChart g3 charts for the United Kingdom, Ireland and Northwest mainland Europe coast. Plus, Quickdraw Contours mapping software to instantly create personalised fishing maps on-screen with 1 foot contours as you fish. It also has built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, which allows you to purchase and download new charts. ActiveCaptain also gives you access to smart notifications1, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more. Features quick-release bail mount to make it easy to remove and take with you.
The Garmin CHIRP difference

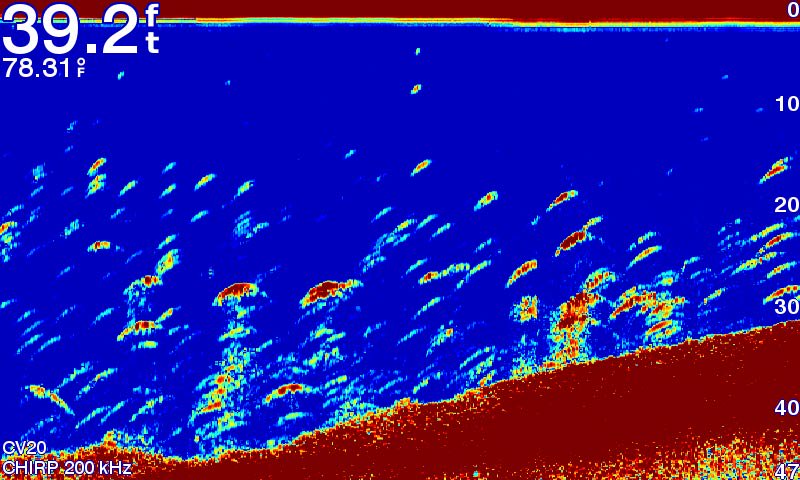

The built-in sonar capabilities of ECHOMAP Plus 95sv include our CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar. It also provides traditional sonar support for Minn Kota® and MotorGuide® trolling motors with integrated transducers.
Clear scanning sonar images
Garmin CHIRP ClearVü scanning sonar gives you a nearly photographic image of what’s below your boat. Garmin CHIRP SideVü™shows you in incredible detail, what lies off to the sides of your boat. You clearly see structure, submerged objects and fish.
Preloaded BlueChart g3 charts
Preloaded with highly detailed Garmin BlueChart g3 mapping covering the British Isles in their entirety, including the Thames Estuary, Caledonian Canal, Outer Hebrides, Shetland and Orkney Islands, Isle of Wight, Isle of Man, Lough Neagh, The Shannon river (up to Lough Kee) and the Irish Sea. Continental coverage from Brest, FR to Kiel, DE including the Channel Islands, the Waddenzee, the IJsselmeer, the canals of The Netherlands, the Meuse River to Liege, BE; the Rhine River to Dusseldorf, DE and the Kiel Canal.
Quickdraw Contours to create your own maps
Instantly create personalised fishing maps on-screen with 1 foot contours, then tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.
Get connected with ActiveCaptain app
Our free all-in-one ActiveCaptain app allows you to manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your chartplotter, charts, maps and the community. Use the combo’s built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, which allows you to update or purchase and download new charts. ActiveCaptain also gives you access to smart notifications¹, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more.
SailAssist features include laylines, enhanced wind rose and heading and course-over-ground lines. See true and apparent wind angle and speed as well as set and drift and a glance. To help you gain a wind-maximising competitive edge, a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer.
Upgrade to our best maps on the water
See fish swimming in real time
Add optional Panoptix all-seeing sonar transducer and see all around your boat and below it — in real time, even while your boat is stationary. See your lure as it sinks, relative to structure in the water. Watch the movement of fish — and their reactions to your bait — up to 100 feet away or below the boat.
NMEA 2000® network support
Provides NMEA 2000 support for engine data, sensors, FUSION-LINK™ audio system, autopilots and more.
Take your ECHOMAP Plus with you
When you’re off the water, it’s easy to keep your ECHOMAP Plus combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your ECHOMAP Plus from power and the mount.
1 When paired with a compatible smartphone
2 Auto Guidance is for planning purposes only and does not replace safe navigation operations.
Physical & Performance
|Display size||19.9 x 11.3 cm; 22.9 cm diagonal (9")|
|Display resolution||400 x 800 pixels|
|Physical dimensions||28.2 x 16.4 x 6.0 cm|
|Mounting options||Bail or flush|
|Display type||WVGA display|
|Antenna||Internal or external over NMEA 2000|
Maps & Navigation
|Preloaded maps||BlueChart® g2 charts for the United Kingdom, Ireland and Northwest mainland Europe coast|
|Accepts data cards||1 microSD™ card; 32 GB maximum card size|
|Track log||50,000 points; 50 saved tracks|
Yes with CHIRP (built-in)
|Transmit power||500 W (RMS) / 4,000 W (peak to peak)|
|NMEA 0183 compatible||Yes|
Yes with CHIRP
|Dual-beam (77/200 kHz) sonar capable||Yes|
|Supports DSC (displays position data from DSC-capable VHF radio)||Yes|
|NMEA 2000® compatible||Yes|
|Garmin Marine Network™ ports||
1 Panoptix™ port
|Garmin Sonar compatible||yes|
|GSD™ Black Box sonar support||No|
|Sonar history rewind||Yes|
|Garmin SmartMode compatible (customisable monitor presets)||No|
|Garmin Helm™ compatible||no|
|Dual-frequency (50/200 kHz) sonar capable||Yes|
2,300 ft @ 77 kHz, freshwater
1,100 ft @ 77 kHz, saltwater
(depth capacity is dependent on water bottom type and other water conditions)
|SiriusXM™ Weather & Radio compatible||Yes|
|CHIRP sonar technology||Yes (Built-in)|
|Water temperature log and graph||Yes|
|GCV™ Black Box sonar support||No|
|Wireless mouse compatible||No|
|NMEA 0183 input ports||
|Supports AIS (tracks target ships position)||Yes|
|Video output ports||None|
|Garmin Meteor™ Audio System compatible||No|
|Wireless remote compatible||No|
|Supports FUSION-Link™ compatible radios||Yes|
|Transducer pin numbers||12|
|Bottom lock (shows return from the bottom up)||Yes|
|NMEA 0183 output ports||
|Voltage range||10-20 Vdc input|
|GRID™ (Garmin Remote Input Device) compatible||No|
|Video input ports||None|
|Garmin Radar compatible||No|
In The Box
- ECHOMAP Plus 95sv with BlueChart g2 for UK, Ireland and Northwest mainland Europe coast
- Power/data cable
- Tilt/swivel mount with quick release cradle
- 12-pin sounder to 8-pin transducer adapter cable
- Flush mount
- Protective cover
